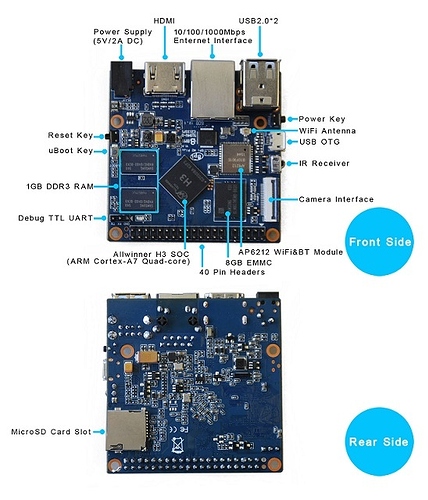

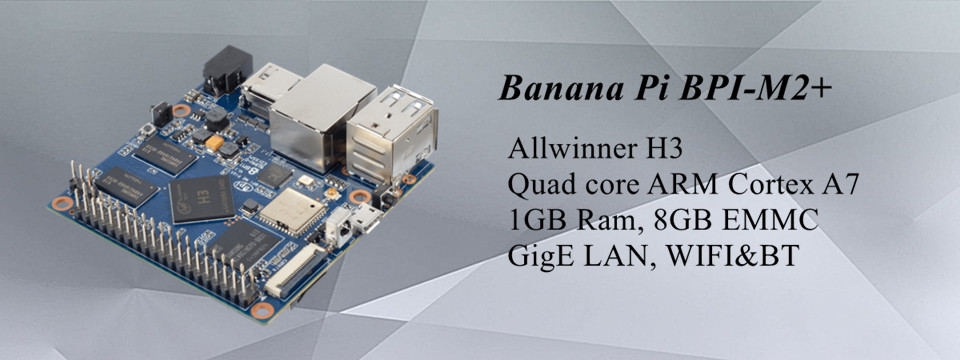

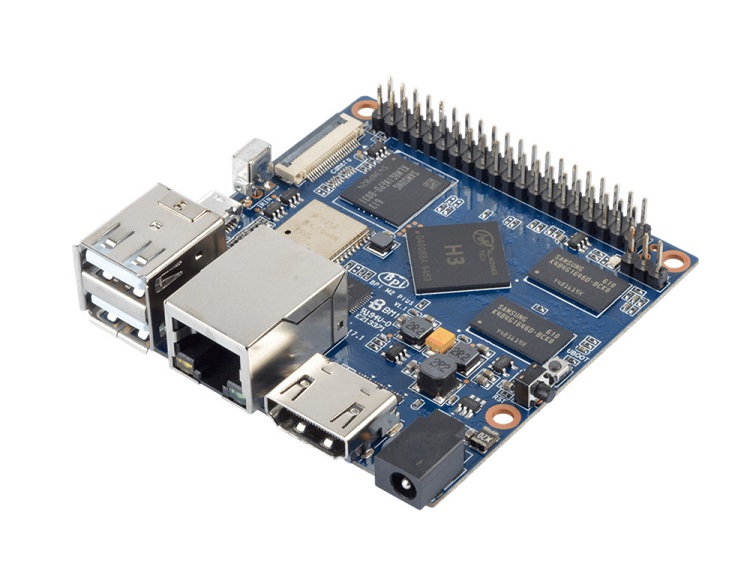

BPI-M2+
Tarjeta Banana PI BPI-M2+ CPU Allwinner H3 quad core 1.2GHz Cortex-A

CLP $ 84.270 + IVA 84270.0 CLP

CLP $ 84.270

DISPONIBLE


Unidades en Stock: 54

Casa Matriz: 54 (Entrega inmediata)

Sin Stock en Tránsito

IGUALAR PRECIO

Encontró un mejor precio, pero prefiere hacer negocios con nosotros?, pinche el link de IGUALAR PRECIO.

agregar al carro

Ficha Técnica en PDF

Descargar PDF



ESPECIFICACIONES TÉCNICAS

Categoría del Producto Componentes / Tarjetas PI / Tarjetas banana PI
Marca Banana Pi
SKU BPI-M2+
CPU H3,32 Bit Cortex™-A7 Quad-Core
GPU ARM® Mali400MP2
Memoria (SDRAM) 1G (compartida con GPU)
Almacenaje Onboard MicroSD(TF) card /MMC card slot eMMC 8GB
Ethernet 1 x RJ-45. 10/100/1000Base-T
Onboard WIFI & Bluetooth 802.11b/g/n & BT4.0
Display HDMI
Cámara Parallel 8-bit camera interface
Salida de video HDMI 1.4@1920*1080P LVDS/Sync RGB/CPU LCD interface up to 1920x1200 Video decoding speed up to 1080p@60fps Video encoding H.264 HP up to 1080p@30fps
Salida de audio HDMI
Entrada de audio No disponible
GPIO 40-PIN: PWM,GPIO,UART,I²C bus,I²S bus,SPI bus,+3.3v,+5v,ground. CAN bus
Remoto IR Receiver
Puertos USB 2 USB ports, 1 OTG microUSB port
Botones Reset button, Power button, Uboot button
LED Power LED (red,Can be defined by user)
Alimentación 5V/2A via DC in and/or MicroUSB (OTG)
Medidas del Board 65mm x 65mm
