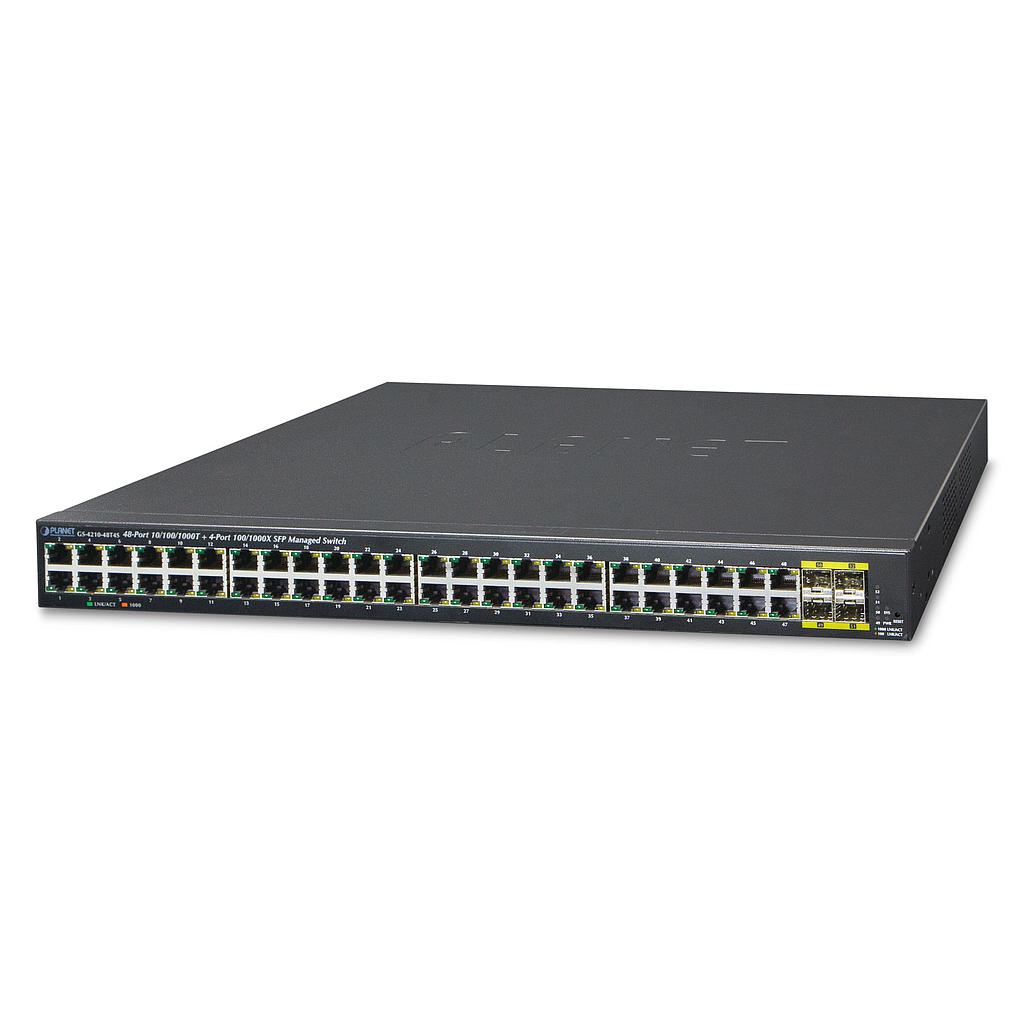

48-Port 10/100/1000BASE-T + 4-Port 100/1000BASE-X SFP Gigabit Managed Switch

GS-4210-48T4S

48-Port 10/100/1000BASE-T + 4-Port 100/1000BASE-X SFP Gigabit Managed Switch

CLP $ 511.500 CLP $ 511.500 + IVA 511500.0 CLP

CLP $ 511.500

PRODUCTO IMPORTADO A PEDIDO

TIEMPO DE ENTREGA: 12 días

Unidades en Stock: 0

Sin Stock en Tránsito

IGUALAR PRECIO

Encontró un mejor precio, pero prefiere hacer negocios con nosotros?, pinche el link de IGUALAR PRECIO.

agregar al carro

Ficha Técnica en PDF

ESPECIFICACIONES TÉCNICAS

Categoría del Producto	Conectividad / Switches Ethernet / Switch administrable L2/4 de 10/100/1000M
Marca	Planet Networking
SKU	GS-4210-48T4S
10/100/100BASE-T	48
1000BASE-SX/LX	4
100BASE-FX	compatible
802.1p priority	Si / 8 levels
802.3x Flow Control	Si
Access Control List	IPv4/IPv6 IP-based ACL / MAC-based ACLIPv4/IPv6 IP-based ACE / MAC-based ACE
Access Control List: IP-Based	Si
Access Control List: MAC-Based	Si
Access Control List: TCP / UDP	Si
Address Table	16K entries
ARP Inspection	Si
Authentcation: 802.1x Port-Based	Si
Auto MDI/MDI-X	Si
Auto-negotiation	Si
Basic Management Interfaces	Web browser / Telnet / SNMP v1. v2c. v3Firmware upgrade via HTTP / TFTP protocol through Ethernet networkConfiguration upload / download through HTTP / TFTPRemote / Local SyslogSystem logLLDP protocol SNTPPLANET Smart Discovery Utility
Cable Diagnostic	Si
Configuration backup/recovery	Si / Si
Console	1 RS232-to-RJ45 serial port (115200. 8. N. 1)
Console (RS-232)	Si
Copper Ports	48 x 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports
DDM	v1, v2c, v3
DHCP Snooping	Si
DiffServ Policy QoS	Si
Dimensions (W x D x H)	440 x 330 x 44 mm. 1U height
EMI / Safety	FCC Class A, CE
Enclosure	Metal
ESD Protection	6KV DC
Fiber Connector Type	SFP
Firmware Upgrade	Si
Flow Control	IEEE 802.3x pause frame for full-duplexBack pressure for half-duplex
Hardware Version	2
IGMP Snooping	IGMP (v2/v3) snoopingIGMP querierUp to 256 multicast groups
IP Filtering	Si
IP Source Guard	Si
IP TOS/DSCP	Si
IPv6 Management	Si
Jumbo Frame	10K bytes
Link Aggregation	IEEE 802.3ad LACP and static trunkSupports 8 trunk groups with each having 8 ports
Link Aggregation: 802.3ad LACP	Si
Link Aggregation: Groups / Ports per Group	8 Groups / 8 Ports
Link Aggregation: Port Trunk	Si
LLDP-MED	Si
Local System log / Remote Syslog	NTP
MAC Security: MAC Binding	Si
MAC Security: MAC Filtering	Si
MAC Security: Static MAC	Si / 64
MAC Table	16K
Memory Buffer	12M bits
MLD Snooping	IPv6 MLD (v1 / v2) snooping. up to 256 multicast groups
Multicast: IGMP Fast Leave	Si
Multicast: IGMP Querier	Si
Multicast: IGMP Snooping	v1, v2, v3
Multicast: MLD Fast Leave	Si
Multicast: MLD Querier	Si
Multicast: MLD Snooping	Si
Multicast: MVR	Si
Operating	Temperature: 0 ~ 50 degrees CRelative Humidity: 5 ~ 95% (non-condensing)
Password Control Access	Si
Port Configure (Speed / Duplex)	Si
Port Mirror	TX, RX, Both
Port Mirroring	TX / RX / BothMany-to-1 monitor
Port Security	Si / 256 MAC
Port-Based	Si
Power Consumption / Dissipation	37.9 watts / 129.239 BTU
Power Requirement	100~240V AC, 50/60Hz
Power Requirements	AC 100~240V. 50/60Hz. auto-sensing
Power Saving	Si
Power Supply	Internal
Priority Mode	Strict / WRR
Product Status	Available
QoS	8 mapping IDs to 8 level priority queues 　- Port number 　- 802.1p priority　- DSCP / IP precedence of IPv4 / IPv6 packetsTraffic classification based. strict priority and WRRIngress / Egress Rate Limit per port bandwidth control
QoS Mode	Port-COS DSCP-COS 802.1p-COS
Queue	8
Rackmountable	Si
RADIUS	Si
Rate Control: Egress	Si
Rate Control: Ingress	Si
Regulatory Compliance	FCC Part 15 Class A. CE
RMON	Si / Si
Secure Management Interfaces	SSH. SSL. SNMPv3
Security	IEEE 802.1X port-based authenticationBuilt-in RADIUS client to co-operate with RADIUS serverRADIUS / TACACS+ authenticationIP-MAC port bindingMAC filteringStatic MAC addressDHCP snooping and DHCP Option82STP BPDU guard. BPDU filtering and BPDU forwardingDoS attack preventionARP inspectionIP source guardStorm control support- Broadcast / unknown unicast / unknown multicast
SFP/mini-GBIC Slots	4 100/1000BASE-X SFP interfaces.
Shared Data Buffer	12Mbit SRAM packet buffer
SNMP	Si
SNMP MIBs	RFC 3635 Ethernet-like MIBRFC 2863 Interface Group MIBRFC 2819 RMON (1. 2. 3. 9)RFC 1493 Bridge MIB
SNMP Trap	1,2,3,9
Spanning Tree Protocol	STP. IEEE 802.1D Spanning Tree ProtocolRSTP. IEEE 802.1w Rapid Spanning Tree ProtocolMSTP. IEEE 802.1s Multiple Spanning Tree Protocol STP BPDU Guard. BPDU Filtering and BPDU Forwarding
Spanning Tree: 802.1D	Si
Spanning Tree: 802.1s	Si
Spanning Tree: 802.1w	Si
SSH/SSL	Si
Stacking: Stacking Group (Unit)	HTTP, TFTP
Standards Compliance	IEEE 802.3 10BASE-TIEEE 802.3u 100BASE-TX / 100BASE-FXIEEE 802.3z Gigabit SX/LXIEEE 802.3ab Gigabit 1000BASE-TIEEE 802.3x flow control and back pressureIEEE 802.3ad port trunk with LACPIEEE 802.1D Spanning Tree ProtocolIEEE 802.1w Rapid Spanning Tree ProtocolIEEE 802.1s Multiple Spanning Tree ProtocolIEEE 802.1p Class of ServiceIEEE 802.1Q VLAN taggingIEEE 802.1X Port Authentication Network ControlIEEE 802.1ab LLDPRFC 768 UDPRFC 793 TFTPRFC 791 IPRFC 792 ICMPRFC 2068 HTTPRFC 1112 IGMP version 1RFC 2236 IGMP version 2RFC 3376 IGMP version 3RFC 2710 MLD version 1RFC 3810 MLD version 2
Storage	Temperature: -20 ~ 70 degrees CRelative Humidity: 5 ~ 95% (non-condensing)
Storm Control: Broadcast	Si
Storm Control: Multicast	Si
Storm Control: Unicast	Si
Switch Architecture	Store-and-Forward
Switch Fabric	104Gbps / non-blocking
Switch Throughput@64bytes	77.38Mpps @64bytes
TACACS+	Si
Telnet	Si
Thermal Fan	Fanless design
Throughput (packet per second@64 bytes)	77.38Mpps
Time Server	Si
VLAN	802.1Q tagged-based VLAN Up to 256 VLAN groups. out of 4094 VLAN IDs802.1ad Q-in-Q tunneling (VLAN stacking)Voice VLANProtocol VLANPrivate VLAN (Protected port)GVRPManagement VLAN
VLAN: 802.1Q VLAN	Si
VLAN: Active VLAN	Si
VLAN: GVRP	Si
VLAN: Management VLAN	Si
VLAN: Private VLAN	Si
VLAN: Protocol-Based	Si
VLAN: Q-in-Q VLAN	Si
Voice VLAN	Si
Web Management	Si
Weight	4.0 kg
