Ficha Técnica en PDF
ESPECIFICACIONES TÉCNICAS
| Categoría del Producto | Conectividad / Switches Ethernet / Switch administrable L2/4 de 10/100/1000M |
| Marca | Planet Networking |

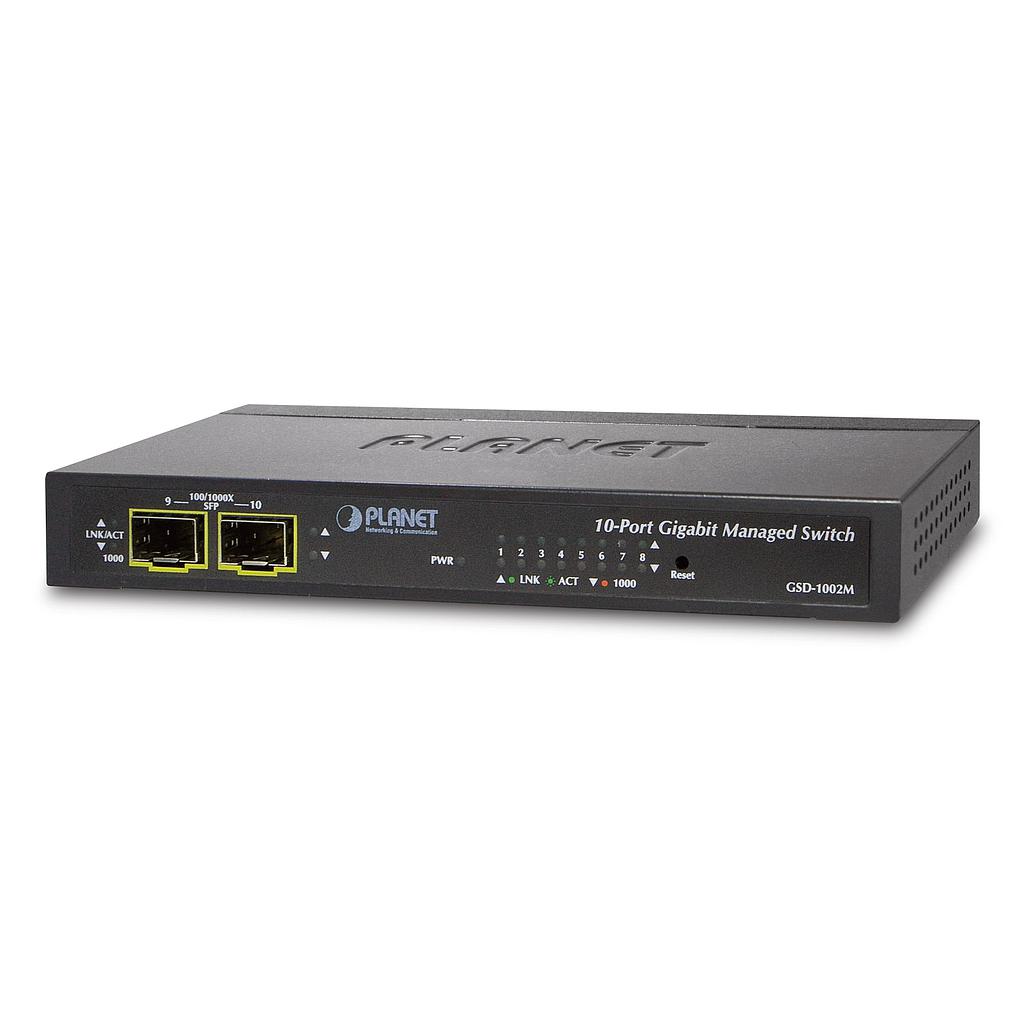

| SKU | GSD-1002M |
| 10/100/100BASE-T | 10 |
| 1000BASE-SX/LX | 2 |
| 100BASE-FX | compatible |
| 802.1p priority | Si / 8 levels |
| 802.3x Flow Control | Si |
| Access Control List | IPv4/IPv6 IP-based ACL / MAC-based ACL |
| Access Control List: IP-Based | Si |
| Access Control List: MAC-Based | Si |
| Access Control List: TCP / UDP | Si |
| Address Table | 8K entries |
| ARP Inspection | Si |
| Authentcation: 802.1x Port-Based | Si |
| Auto MDI/MDI-X | Si |
| Auto-negotiation | Si |
| Basic Management Interfaces | Web browser / Telnet / SNMP v1. v2cFirmware upgrade by HTTP / TFTP protocol through Ethernet networkRemote / Local SyslogSystem logLLDP protocol SNTP |
| Cable Diagnostic | Si |
| Configuration backup/recovery | Si / Si |
| Console (RS-232) | Si |
| Copper Ports | 8 x 10/100/1000Base-T RJ45 Auto-MDI/MDI-X port |
| DDM | v1, v2c, v3 |
| DHCP Snooping | Si |
| DiffServ Policy QoS | Si |
| Dimensions (W x D x H) | 191 x 86 x 26 mm |
| EMI / Safety | FCC Class A, CE |
| Enclosure | Metal |
| ESD Protection | 6KV DC |
| Fiber Connector Type | SFP |
| Firmware Upgrade | Si |
| Flow Control | IEEE 802.3x pause frame for full-duplexBack pressure for half-duplex |
| IGMP Snooping | IGMP (v2 / v3) SnoopingIGMP QuerierUp to 256 multicast groups |
| IP Filtering | Si |
| IP Source Guard | Si |
| IP TOS/DSCP | Si |
| IPv6 Management | Si |
| Jumbo Frame | 10K bytes |
| LED | System: |
| Link Aggregation | IEEE 802.3ad LACP and static trunkSupports 8 groups of 8-port trunk |
| Link Aggregation: 802.3ad LACP | Si |
| Link Aggregation: Groups / Ports per Group | 8 Groups / 8 Ports |
| Link Aggregation: Port Trunk | Si |
| LLDP-MED | Si |
| Local System log / Remote Syslog | NTP |
| MAC Security: MAC Binding | Si |
| MAC Security: MAC Filtering | Si |
| MAC Security: Static MAC | Si / 64 |
| MAC Table | 8K |
| Memory Buffer | 4Mb |
| MLD Snooping | MLD (v1 / v2) Snooping. up to 256 multicast groups |
| Multicast: IGMP Fast Leave | Si |
| Multicast: IGMP Querier | Si |
| Multicast: IGMP Snooping | v1, v2, v3 |
| Multicast: MLD Fast Leave | Si |
| Multicast: MLD Querier | Si |
| Multicast: MLD Snooping | Si |
| Multicast: MVR | Si |
| Operating | Temperature: 0 ~ 50 degrees CRelative Humidity: 5 ~ 95% (non-condensing) |
| Password Control Access | Si |
| Port Configure (Speed / Duplex) | Si |
| Port Mirror | TX, RX, Both |
| Port Mirroring | TX / RX / BothMany-to-1 monitor |
| Port Security | Si / 256 MAC |
| Port-Based | Si |
| Power Consumption / Dissipation | 10.9 watts / 37.2 BTU |
| Power Requirement | 12V DC, 1A |
| Power Requirements | IEEE 802.3af / at PoE 48V ~ 56V DC in-line power12V DC power adapter |
| Power Saving | Si |
| Power Supply | External |
| Priority Mode | Strict / WRR |
| Product Status | Available |
| QoS | 8 mapping ID to 8 level priority queues - Port Number - 802.1p priority - 802.1Q VLAN tag - DSCP field in IP PacketTraffic classification based. Strict priority and WRR |
| QoS Mode | Port-COS DSCP-COS 802.1p-COS |
| Queue | 8 |
| RADIUS | Si |
| Rate Control: Egress | Si |
| Rate Control: Ingress | Si |
| Regulation Compliance | FCC Part 15 Class A. CE |
| RMON | Si / Si |
| Secure Management Interfaces | SSH. SSL. SNMP v3 |
| Security | IEEE 802.1x – Port-based authenticationBuilt-in RADIUS client to co-operate with RADIUS serverRADIUS / TACACS+ user access authenticationIP-MAC port bindingMAC FilterStatic MAC AddressDHCP Snooping and DHCP Option 82STP BPDU Guard. BPDU Filtering and BPDU ForwardingDoS Attack PreventionARP InspectionIP Source Guard |
| SFP/mini-GBIC Slots | 2 100/1000Base-X SFP interfacesSupports 100/1000Mbps dual mode and DDM |
| Share Data Buffer | 512K Bytes |
| SNMP | Si |
| SNMP MIBs | RFC 3635 Ethernet-like MIBRFC 2863 Interface Group MIBRFC 2819 RMON (1. 2. 3. 9)RFC 1493 Bridge MIB |
| SNMP Trap | 1,2,3,9 |
| Spanning Tree Protocol | STP / RSTP / MSTP |
| Spanning Tree: 802.1D | Si |
| Spanning Tree: 802.1s | Si |
| Spanning Tree: 802.1w | Si |
| SSH/SSL | Si |
| Stacking: Stacking Group (Unit) | HTTP, TFTP |
| Standards Compliance | IEEE 802.3 10Base-TIEEE 802.3u 100Base-TX/100Base-FXIEEE 802.3z Gigabit SX/LXIEEE 802.3ab Gigabit 1000TIEEE 802.3x Flow Control and Back PressureIEEE 802.3ad Port Trunk with LACPIEEE 802.1D Spanning Tree protocolIEEE 802.1w Rapid Spanning Tree protocolIEEE 802.1s Multiple Spanning Tree protocolIEEE 802.1p Class of ServiceIEEE 802.1Q VLAN TaggingIEEE 802.1x Port Authentication Network ControlIEEE 802.1ab LLDPIEEE 802.3af (Power over Ethernet)IEEE 802.3at (High Power over Ethernet)RFC 768 UDPRFC 793 TFTPRFC 791 IPRFC 792 ICMPRFC 2068 HTTPRFC 1112 IGMP version 1RFC 2236 IGMP version 2RFC 3376 IGMP version 3RFC 2710 MLD version 1RFC 3810 MLD version 2 |
| Storage | Temperature: -20 ~ 70 degrees CRelative Humidity: 5 ~ 95% (non-condensing) |
| Storm Control: Broadcast | Si |
| Storm Control: Multicast | Si |
| Storm Control: Unicast | Si |
| Switch Architecture | Store-and-Forward |
| Switch Fabric | 20Gbps / non-blocking |
| Switch Throughput@64Bytes | 14.8Mpps |
| TACACS+ | Si |
| Telnet | Si |
| Throughput (packet per second@64 bytes) | 14.881Mpps |
| Time Server | Si |
| VLAN | 802.1Q Tagged-based VLAN Up to 256 VLAN groups. out of 4094 VLAN IDs802.1ad Q-in-Q tunnelingVoice VLANProtocol VLANPrivate VLAN (Protected port)GVRP |
| VLAN: 802.1Q VLAN | Si |
| VLAN: Active VLAN | Si |
| VLAN: GVRP | Si |
| VLAN: Management VLAN | Si |
| VLAN: Private VLAN | Si |
| VLAN: Protocol-Based | Si |
| VLAN: Q-in-Q VLAN | Si |
| Voice VLAN | Si |
| Web Management | Si |
| Weight | 396g |
