Ficha Técnica en PDF
ESPECIFICACIONES TÉCNICAS
| Categoría del Producto | Conectividad / Ethernet Industrial / Switch POE Riel DIN Gigabit |
| Marca | Planet Networking |

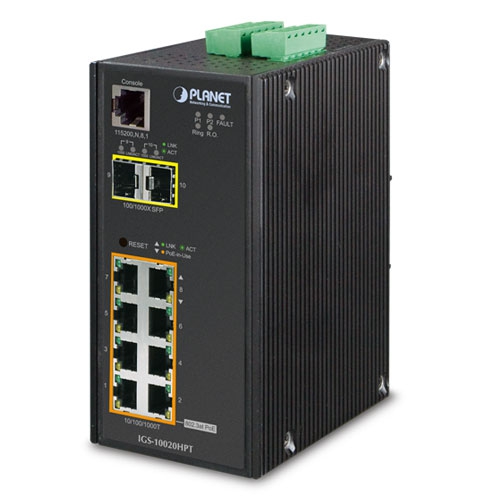

| SKU | IGS-10020HPT |
| Storage | -40~75 degrees C |
| Operating | -40~75 degrees C |
| Data Redundant: Recover Time | < 20ms |
| Power Pin Assignment | 1/2(+), 3/6(-) |
| Memory Buffer | 1392K Bytes |
| Throughput (packet per second@64 bytes) | 14.8Mpps |
| Alarm: Relay current carry ability | 1A @ DC 24V |
| 1000BASE-SX/LX | 2 |
| Switch Fabric | 20Gbps |
| VLAN: Active VLAN | 256 |
| PoE Budget | 270 watts |
| Routing Table | 32 routing entries |
| Power Requirement | 48V DC |
| Redundant Power | 48V DC |
| Link Aggregation: Groups / Ports per Group | 5 Groups / 8 Ports |
| Protection: ESD (Ethernet) | 6KV |
| Dimension ( W x D x H) | 72 x 107 x 152 mm |
| 10/100/100BASE-T | 8 |
| PoE 802.3af Port | 8 |
| Queue | 8 |
| IP Interfaces | 8 VLAN Interfaces |
| PoE Standard | 802.3at / 802.3af |
| MAC Table | 8K |
| Jumbo Frame | 9K |
| Product Status | Available |
| MAC Security: MAC Filtering | By ACL |
| IP Filtering | By ACL |
| 100BASE-FX | compatible |
| QoS Mode | DSCP-COS Port-COS 802.1p-COS |
| Data Redundant: Ring Protocol | E.R.P.S. Ring |
| PSE Type | End-Span |
| EMI / Safety | FCC Class A, CE |
| Firmware Upgrade | HTTP / TFTP |
| Enclosure | IP30 / Aluminum |
| Routing Protocol | IPv4 Software Static Routing IPv6 Software Static Routing |
| Alarm: Event Relay | Port breakdown Power fail |
| Fiber Connector Type | SFP |
| Cable Diagnostic | Si |
| Over Temperature Protection | Si |
| PoE Schedule | Si |
| Auto-negotiation | Si |
| Auto MDI/MDI-X | Si |
| 802.3x Flow Control | Si |
| Port Configure (Speed / Duplex) | Si |
| Link Aggregation: Port Trunk | Si |
| Link Aggregation: 802.3ad LACP | Si |
| VLAN: 802.1Q VLAN | Si |
| VLAN: Q-in-Q VLAN | Si |
| VLAN: Protocol-Based | Si |
| VLAN: Private VLAN | Si |
| VLAN: Management VLAN | Si |
| Spanning Tree: 802.1d | Si |
| Spanning Tree: 802.1w | Si |
| Spanning Tree: 802.1s | Si |
| Multicast: MVR | Si |
| Port-Based | Si |
| IP TOS/DSCP | Si |
| Protocol Number (TCP/UDP) | Si |
| Voice VLAN | Si |
| Storm Control: Multicast | Si |
| Storm Control: Broadcast | Si |
| Storm Control: Unicast | Si |
| Access Control List: IP-Based | Si |
| Access Control List: MAC-Based | Si |
| Access Control List: TCP / UDP | Si |
| Authentcation: 802.1x Port-Based | Si |
| Authentcation: MAC-Based | Si |
| Authentcation: Guest VLAN | Si |
| RADIUS | Si |
| TACACS+ | Si |
| DHCP Snooping | Si |
| IP Source Guard | Si |
| ARP Inspection | Si |
| Console (RS-232) | Si |
| Telnet | Si |
| Web Management | Si |
| SNMP | Si |
| SNMP Trap | Si |
| RMON | Si |
| SSH/SSL | Si |
| Password Control Access | Si |
| User Privilege Control | Si |
| Configuration backup/recovery | Si |
| Time Server | Si |
| LLDP | Si |
| LLDP-MED | Si |
| DHCP Relay | Si |
| Installation: DIN-Rail | Si |
| Installation: Wall Mount | Si |
| Rate Control: Ingress | Si / 100Kbps |
| Rate Control: Egress | Si / 100Kbps |
| Port Security | Si / 1024 MAC |
| MAC Security: Static MAC | Si / 64 |
| 802.1p priority | Si / 8 levels |
| Multicast: IGMP/MLD Snooping | Si / Si |
| Multicast: IGMP/MLD Querier | Si / Si |
| Multicast: IGMP/MLD Fast Leave | Si / Si |
| Local System log / Remote Syslog | Si / Si |
| Digital In / Digital Out | Si / Si |
| Priority Mode | Strict / WRR |
| Power Connector | Terminal Block |
| Port Mirror | TX, RX, Both |
