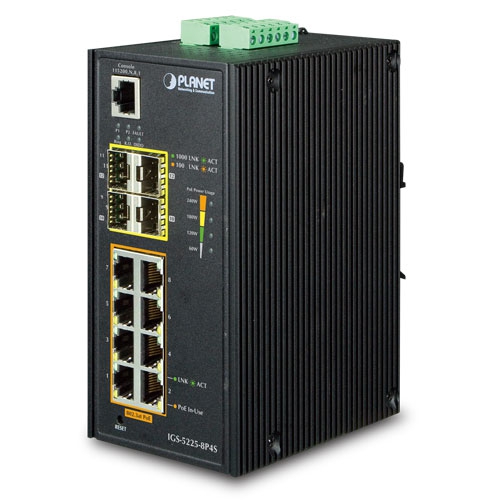

Industrial L2+ 8-Port 10-100-1000T 802.3at PoE + 4-Port 100-1000X SFP Managed

IGS-5225-8P4S

Industrial L2+ 8-Port 10-100-1000T 802.3at PoE + 4-Port 100-1000X SFP Managed

CLP $ 606.360 CLP $ 606.360 + IVA 606360.0 CLP

CLP $ 606.360

DISPONIBLE

Unidades en Stock: 14

Casa Matriz: 4 (Entrega inmediata)

Stock Bodega: 10 (Entrega 24hrs)

Sin Stock en Tránsito

IGUALAR PRECIO

Encontró un mejor precio, pero prefiere hacer negocios con nosotros?, pinche el link de IGUALAR PRECIO.

agregar al carro

Ficha Técnica en PDF

ESPECIFICACIONES TÉCNICAS

Categoría del Producto	Conectividad / Ethernet Industrial / Switch POE Riel DIN Gigabit
Marca	Planet Networking
SKU	IGS-5225-8P4S
Storage	-40~75 degrees C
Operating	-40~75 degrees C
Data Redundant: Recover Time	< 20ms
Power Pin Assignment	1/2(+), 3/6(-)
Throughput (packet per second@64 bytes)	17.85Mpps
Alarm: Relay current carry ability	1A @ DC 24V
PoE Budget	240 watts
Switch Fabric	24Gbps
VLAN: Active VLAN	256
Routing Table	32 routing entries
1000BASE-SX/LX	4
Power Requirement	48V~56V DC
Redundant Power	48V~56V DC
Memory Buffer	4Mbits
Link Aggregation: Groups / Ports per Group	6 Groups / 4 Ports
Protection: ESD (Ethernet)	6KV
Dimension ( W x D x H)	72 x 107 x 152 mm
10/100/100BASE-T	8
PoE 802.3af Port	8
Queue	8
IP Interfaces	8 VLAN Interfaces
PoE Standard	802.3at / 802.3af
MAC Table	8K
Jumbo Frame	9K
Product Status	Available
MAC Security: MAC Filtering	By ACL
IP Filtering	By ACL
100BASE-FX	compatible
QoS Mode	DSCP-COS Port-COS 802.1p-COS
Data Redundant: Ring Protocol	E.R.P.S. Ring
PSE Type	End-Span
EMI / Safety	FCC Class A, CE
Firmware Upgrade	HTTP / TFTP
Enclosure	IP30 / Aluminum
Routing Protocol	IPv4 Software Static Routing IPv6 Software Static Routing
Alarm: Event Relay	Port breakdown Power fail
Fiber Connector Type	SFP
Cable Diagnostic	Si
Over Temperature Protection	Si
PoE Schedule	Si
Auto-negotiation	Si
Auto MDI/MDI-X	Si
802.3x Flow Control	Si
Port Configure (Speed / Duplex)	Si
Link Aggregation: Port Trunk	Si
Link Aggregation: 802.3ad LACP	Si
VLAN: 802.1Q VLAN	Si
VLAN: Q-in-Q VLAN	Si
VLAN: Protocol-Based	Si
VLAN: Private VLAN	Si
VLAN: Management VLAN	Si
Spanning Tree: 802.1d	Si
Spanning Tree: 802.1w	Si
Spanning Tree: 802.1s	Si
Multicast: MVR	Si
Port-Based	Si
IP TOS/DSCP	Si
Protocol Number (TCP/UDP)	Si
Voice VLAN	Si
Storm Control: Multicast	Si
Storm Control: Broadcast	Si
Storm Control: Unicast	Si
Access Control List: IP-Based	Si
Access Control List: MAC-Based	Si
Access Control List: TCP / UDP	Si
Authentcation: 802.1x Port-Based	Si
Authentcation: MAC-Based	Si
Authentcation: Guest VLAN	Si
RADIUS	Si
TACACS+	Si
DHCP Snooping	Si
IP Source Guard	Si
ARP Inspection	Si
Console (RS-232)	Si
Telnet	Si
Web Management	Si
SNMP	Si
SNMP Trap	Si
RMON	Si
SSH/SSL	Si
Password Control Access	Si
User Privilege Control	Si
Configuration backup/recovery	Si
Time Server	Si
LLDP	Si
LLDP-MED	Si
DHCP Relay	Si
Installation: DIN-Rail	Si
Installation: Wall Mount	Si
Rate Control: Ingress	Si / 100Kbps
Rate Control: Egress	Si / 100Kbps
Port Security	Si / 1024 MAC
MAC Security: Static MAC	Si / 64
802.1p priority	Si / 8 levels
Multicast: IGMP/MLD Snooping	Si / Si
Multicast: IGMP/MLD Querier	Si / Si
Multicast: IGMP/MLD Fast Leave	Si / Si
Local System log / Remote Syslog	Si / Si
Digital In / Digital Out	Si / Si
Priority Mode	Strict / WRR
Power Connector	Terminal Block
Port Mirror	TX, RX, Both
