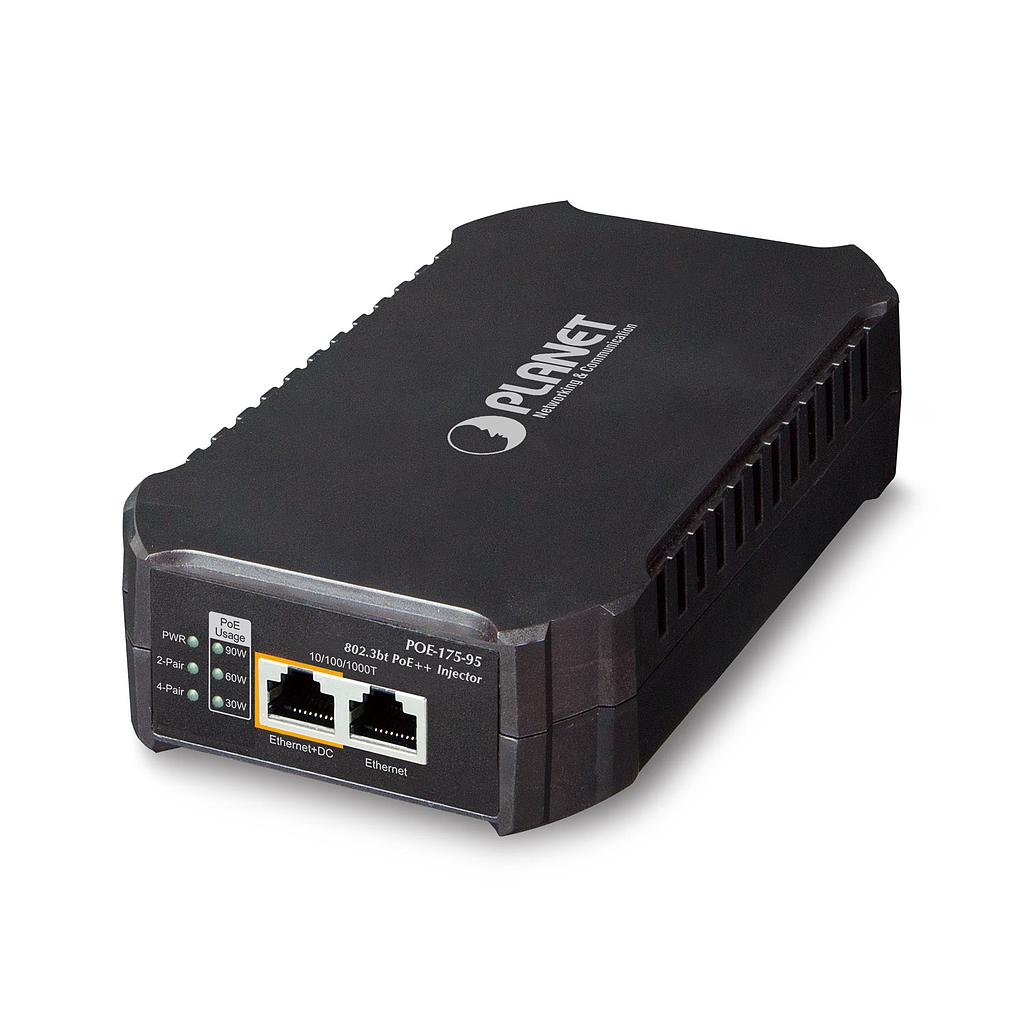

Single-Port 10/100/1000Mbps 802.3bt PoE Injector (95 Watts. internal PWR)

POE-175-95

DISPONIBLE

Unidades en Stock: 8

Casa Matriz: 1 (Entrega inmediata)

Stock Bodega: 7 (Entrega 24hrs)

Sin Stock en Tránsito

IGUALAR PRECIO

Encontró un mejor precio, pero prefiere hacer negocios con nosotros?, pinche el link de IGUALAR PRECIO.

Ficha Técnica en PDF

ESPECIFICACIONES TÉCNICAS

Categoría del Producto
Marca	Planet Networking
SKU	POE-175-95
Data Rate	10/100/1000Mbps
Dimensions (W x D x H)	170 x 100 x 40 mm
Interface	Input Port
LED Indicator	<font color="green"
Network Cable	Twisted-pair cable up to 100 meters (328ft)10BASE-T: 4-pair UTP Cat. 3. 4. 5. 5e. 6100BASE-TX: 4-pair UTP Cat. 5. 5e. 61000BASE-T: 4-pair UTP Cat. 5e. 6
No. of devices that can be powered	1
Operating Humidity	5 ~ 90%. relative humidity. non-condensing
Operating Temperature	0 ~ 50 degrees C
Package Contents	POE-175-95User's manualPower cord
PoE Power Output	Max. 90W@1 m cableMax. 73W@100 m cable
PoE Power Output Budget	DC 54V / 95-watt PoE via 4-pairDC 54V / 30-watt PoE via 2-pair
PoE Power Supply Type	End-span + Mid-span
PoE Standard	IEEE 802.3at/bt Ultra PoE PSE
Power Consumption	120 watts max.
Power Pin Assignment	Pair 1 End-span: 1/2 (-). 3/6 (+)Pair 2 Mid-span: 4/5 (+). 7/8 (-)
Power Requirements	AC 100-240V. 1.5A max.
Regulatory Compliance	FCC Part 15 Class A. CE
Standards Compliance	IEEE 802.3 10BASE-T EthernetIEEE 802.3u 100BASE-TX Fast EthernetIEEE 802.3ab 1000BASE-T Gigabit EthernetIEEE 802.3bt 4-pair Power over Ethernet Type 4IEEE 802.3at Power over Ethernet PlusIEEE 802.3af Power over Ethernet
Storage Humidity	5 ~ 90%. relative humidity. non-condensing
Storage Temperature	-10 ~ 70 degrees C
Unit Output Voltage	DC 54V
Weight	480g
