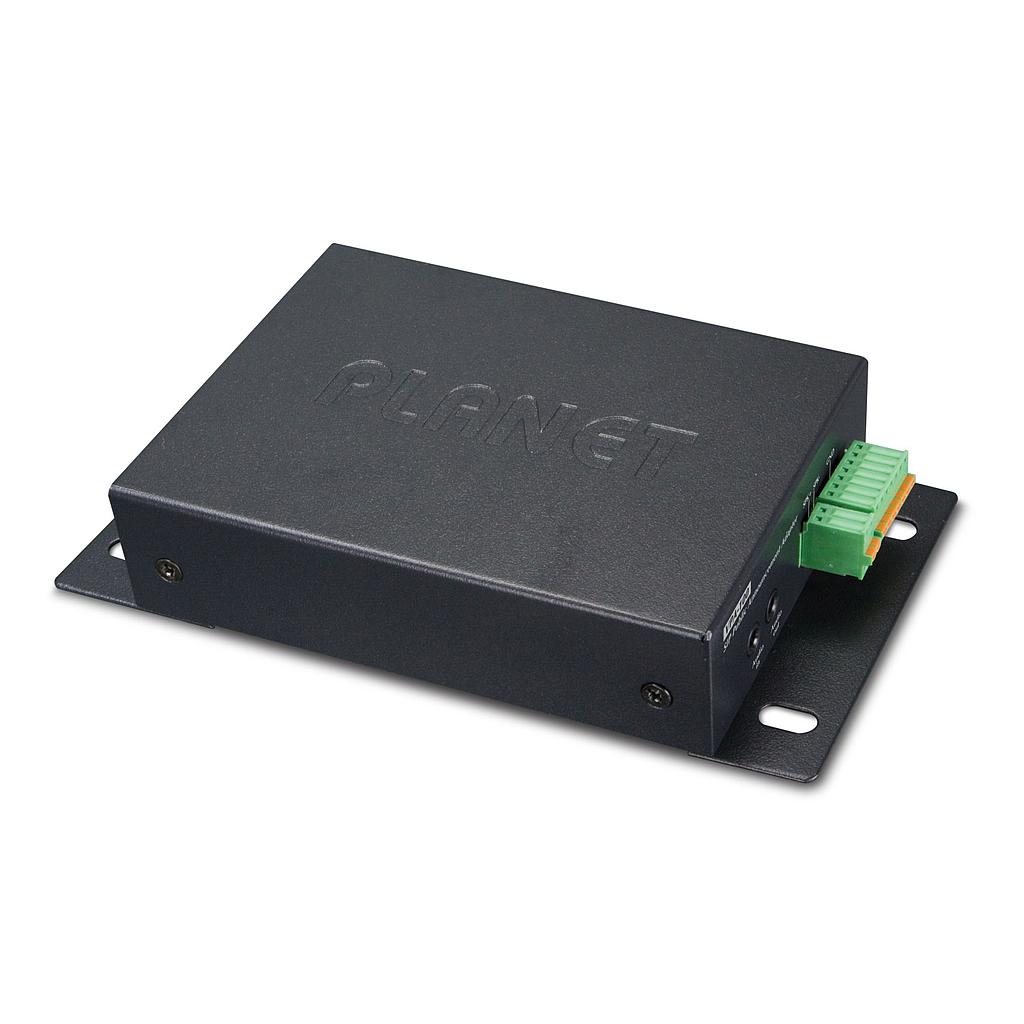

SIP Public Announcement Adapter with PoE

VPA-100

PRODUCTO IMPORTADO A PEDIDO

TIEMPO DE ENTREGA: 12 días

Unidades en Stock: 0

Sin Stock en Tránsito

IGUALAR PRECIO

Encontró un mejor precio, pero prefiere hacer negocios con nosotros?, pinche el link de IGUALAR PRECIO.

CONSULTAR PRECIO

Ficha Técnica en PDF

ESPECIFICACIONES TÉCNICAS

Categoría del Producto	Conectividad / Telefonía IP (VoIP) / SIP Analog Telephone Adapter (ATA)
Marca	Planet Networking
SKU	VPA-100
Connectors	Two 10BASE-T RJ45 Ethernet portsTwo 3.5mm phone connectorsDC power jack Terminal block
Dimensions (W x D x H)	117 x 84 x 31 mm
Emission	CE. FCC
Operating Humidity	10 ~ 95% (non-condensing)
Operating Temperature	0 ~ 40 degrees C
Physical Interfaces	Two 10BASE-T RJ45 Ethernet ports LAN1: Connects to internet and provides PoE function (IEEE 802.3af)LAN2: Connects to other devices for network expansionMicrophone/speaker: 3.5mm connector Terminal block for loudspeaker. power supply. ground and output ports5VDC power supply: Max. 200mA3.3VDC power supply: Max. 500mAPort 1-4 output voltage/current: 3.3V/8mA Reset button
Power Requirements	5V DC. 1A IEEE 802.3af PoE class 3Max. 2W
Telephony Features	One voice lineAuto answerVolume adjustment: output. handset input and speaker inputFull-duplexIncoming ringAudio output mode: speaker and handset
Voice	Microphone: 3.5mm standard interfaceSpeaker: 3.5mm standard interface (Mono)Loudspeaker: SPK+. SPK- (Max. 26db)
Voice Flood Control	Protocol: UDPVoice algorithms:- G.711 A-law and μ-law- G.722/G.722.1/G.722.2- G.723- G.726- G.729- iLBCEcho cancellation noise suppression (ECN)Adaptive jitter buffer
Weight	344g
