Ficha Técnica en PDF
ESPECIFICACIONES TÉCNICAS

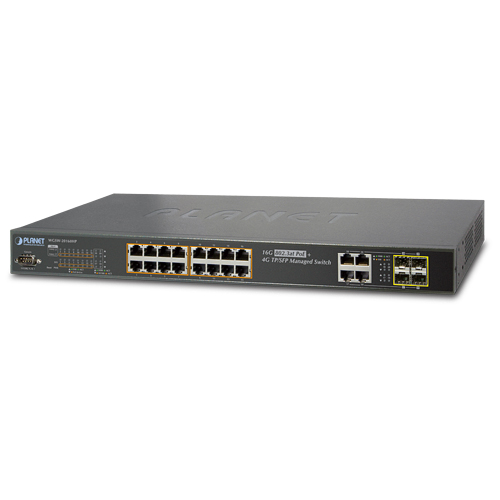

| Categoría del Producto | Conectividad / Power Over Ethernet (POE) / Managed 802.3at High Power PoE Switch |
| Marca | Planet Networking |
| SKU | WGSW-20160HP |
| 10/100/100BASE-T | 20 |
| 1000BASE-SX/LX | 4 combo |
| 100BASE-FX | compatible |
| 802.1p priority | Si / 8 levels |
| 802.3x Flow Control | Si |
| Access Control List: IP-Based | Si |
| Access Control List: MAC-Based | Si |
| Access Control List: TCP / UDP | Si |
| ARP Inspection | Si |
| Authentcation: 802.1x Port-Based | Si |
| Authentcation: MAC-Based | Si |
| Auto MDI/MDI-X | Si |
| Auto-negotiation | Si |
| Cable Diagnostic | Si |
| Configuration backup/recovery | Si / Si |
| Console (RS-232) | Si |
| DDM | Sí |
| DHCP Relay | Si |
| DHCP Snooping | Si |
| DiffServ Policy QoS | Si |
| Dimension ( W x D x H) | 440x300x44 mm |
| EMI / Safety | FCC Class A, CE |
| Fiber Connector Type | SFP |
| Firmware Upgrade | HTTP / TFTP |
| IP Filtering | By ACL |
| IP Interfaces | 8 VLAN Interfaces |
| IP Source Guard | Si |
| IP TOS/DSCP | Si |
| IPv6 Management | Si |
| Jumbo Frame | 9K |
| Link Aggregation: 802.3ad LACP | Si |
| Link Aggregation: Groups / Ports per Group | 12 Groups / 16 Ports |
| Link Aggregation: Port Trunk | Si |
| LLDP | Si |
| LLDP-MED | Si |
| Local System log / Remote Syslog | Si / Si |
| MAC Security: MAC Filtering | By ACL |
| MAC Security: Static MAC | Si / 64 |
| MAC Table | 8K |
| Memory Buffer | 4Mb |
| Multicast: IGMP Fast Leave | Si |
| Multicast: IGMP Querier | Si |
| Multicast: IGMP Snooping | v1, v2, v3 |
| Multicast: MLD Fast Leave | Si |
| Multicast: MLD Querier | Si |
| Multicast: MLD Snooping | Si |
| Multicast: MVR | Si |
| Operating | Operating: 0~50 degreess C |
| Over Temperature Protection | Si |
| Password Control Access | Si |
| PD Alive Check | Si |
| PoE 802.3af / at Port | 16 |
| PoE Budget | 230 watts |
| PoE Schedule | Si |
| PoE Schedule / Power Recycling | Si |
| PoE Standard | 802.3af / 802.3at |
| Port Configure (Speed / Duplex) | Si |
| Port Mirror | TX, RX, Both |
| Port Security | Si / 1024 MAC |
| Port-Based | Si |
| Power Pin Assignment | 1/2(+), 3/6(-) |
| Power Requirement | 100~240V AC, 50/60Hz |
| Power Saving | Si |
| Power Supply | Internal |
| Priority Mode | Strict / WRR |
| Protocol Number (TCP/UDP) | Si |
| PSE Type | End-Span |
| QoS Mode | VLAN-COS TCP/UDP-COS TOS/DSCP-COS 802.1p-COS |
| Queue | 8 |
| Rackmountable | Si |
| RADIUS | Si |
| Rate Control: Egress | Si |
| Rate Control: Ingress | Si |
| RMON | 1,2,3,9 |
| Routing Protocol | IPv4 Software Static Routing IPv6 Software Static Routing |
| Routing Table | 32 routing entries |
| SMTP / SNMP PoE Alert | Si |
| SNMP | v1, v2c, v3 |
| SNMP Trap | Si |
| Spanning Tree: 802.1D | Si |
| Spanning Tree: 802.1s | Si |
| Spanning Tree: 802.1w | Si |
| SSH/SSL | Si / Si |
| Storage | Storage: -10~70 degreess C |
| Storm Control: Broadcast | Si |
| Storm Control: Multicast | Si |
| Storm Control: Unicast | Si |
| Switch Fabric | 40Gbps |
| TACACS+ | Si |
| Telnet | Si |
| Throughput (packet per second@64 bytes) | 29.762Mpps |
| Time Server | NTP |
| User Privilege Control | Si |
| VLAN: 802.1Q VLAN | Si |
| VLAN: Active VLAN | 256 |
| VLAN: Management VLAN | Si |
| VLAN: Port-Based | Si |
| VLAN: Private VLAN | Si |
| VLAN: Protocol-Based | Si |
| VLAN: Q-in-Q VLAN | Si |
| Voice VLAN | Si |
| Web Management | Si |
